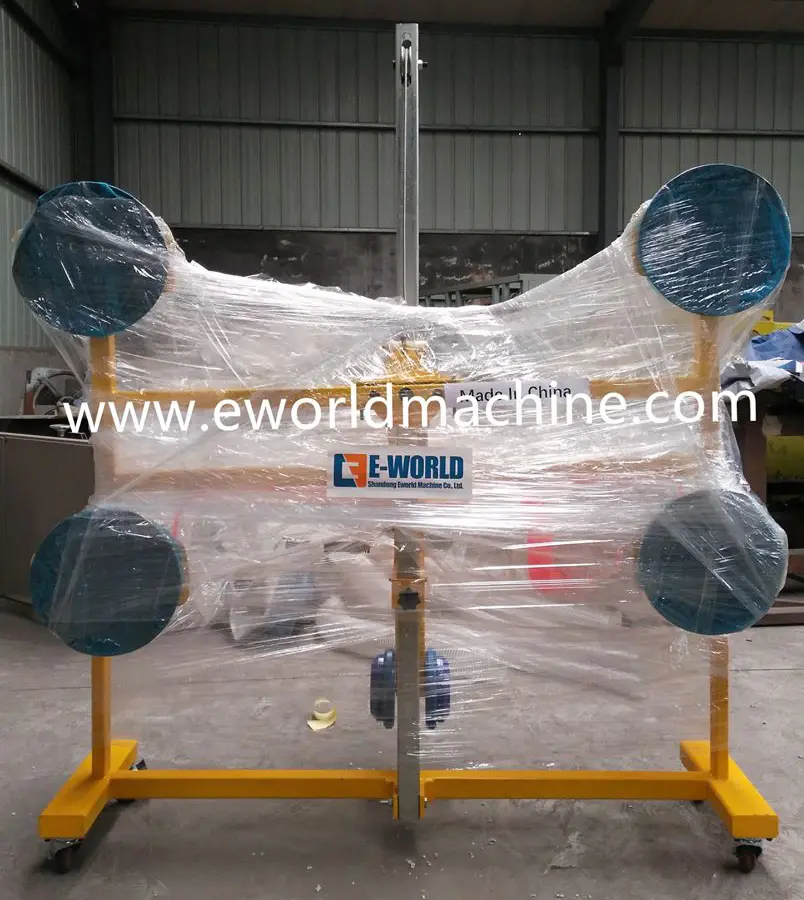

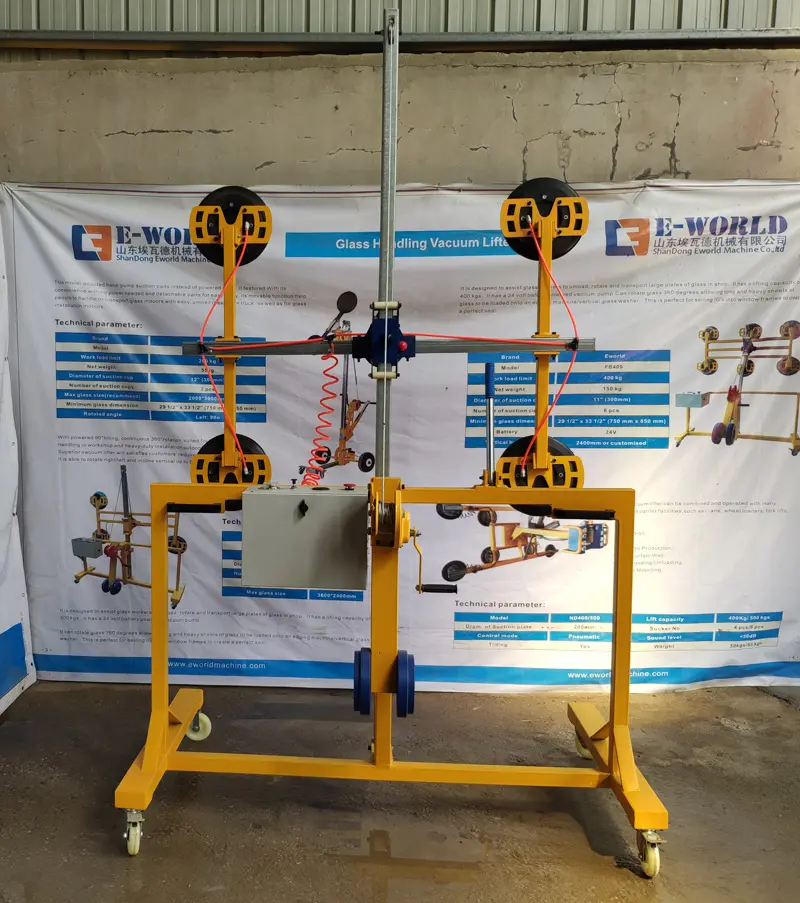

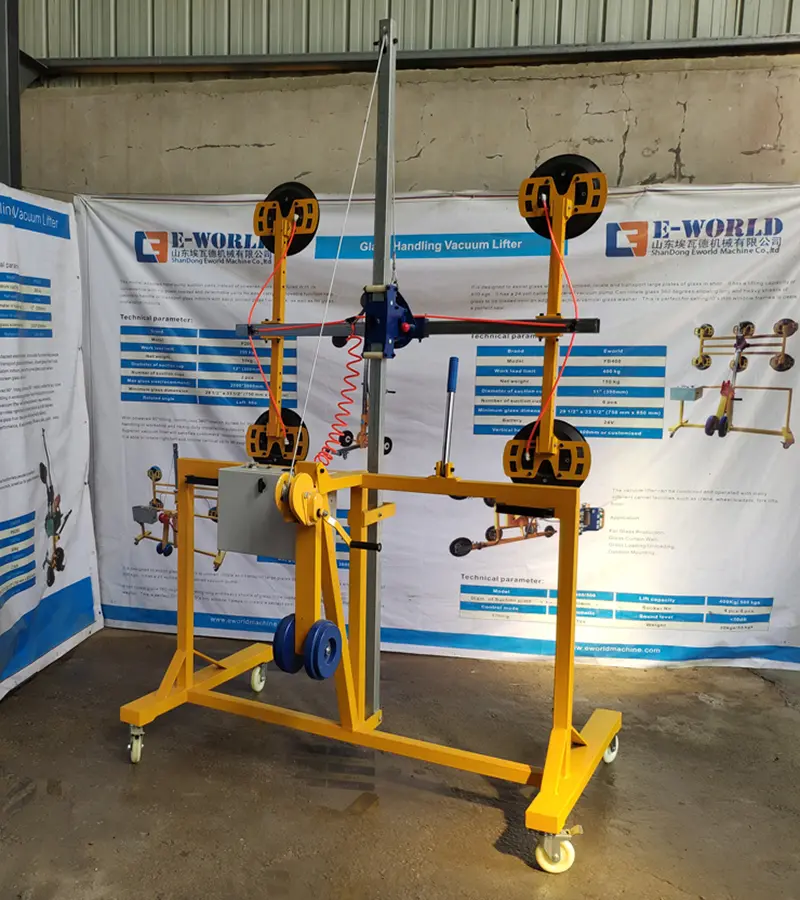

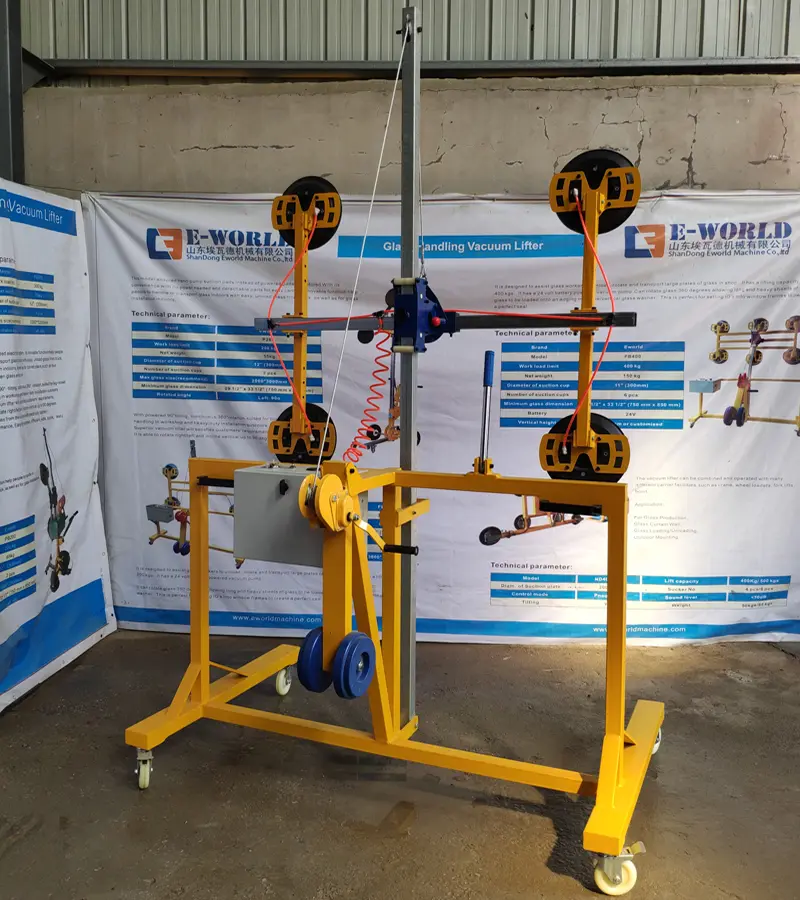

4 suckers vacuum glass lifter
use for glass loading, unloading from truck or glazing for bus, train, moving, curved glass and so on.
It is designed to assist glass workers to unload, rotate and transport large plates of glass in shop. It has a lifting capacity of 300 kgs. It can rotated glass measuring up to 180". It has a 24 volt battery powered vacuum pump.
It can rotate glass 360 degrees allowing long and heavy sheets of glass to be loaded onto an edging machine/vertical glass washer. The bull will allow one or two people to do what use to require four to six people in the past with greater safety. This is perfect for setting IG's into window frames to create a perfect seal.
Rotates Glass 360*
Handles long, narrow glass
Handles large stock sheets
DC Power vacuum pack
Small 24" footprint
Highly maneuverable
One man operation
Technical parameter
|
Brand |
Eworld |
|
Model |
FB300 |
|
Work load limit |
300 kg |
|
Net weight |
80kg |
|
Diameter of suction cup |
200mm |
|
Number of suction cups |
4 pcs |
|
Battery |
24 V |
|
Max glass size |
3000*2400mm |
