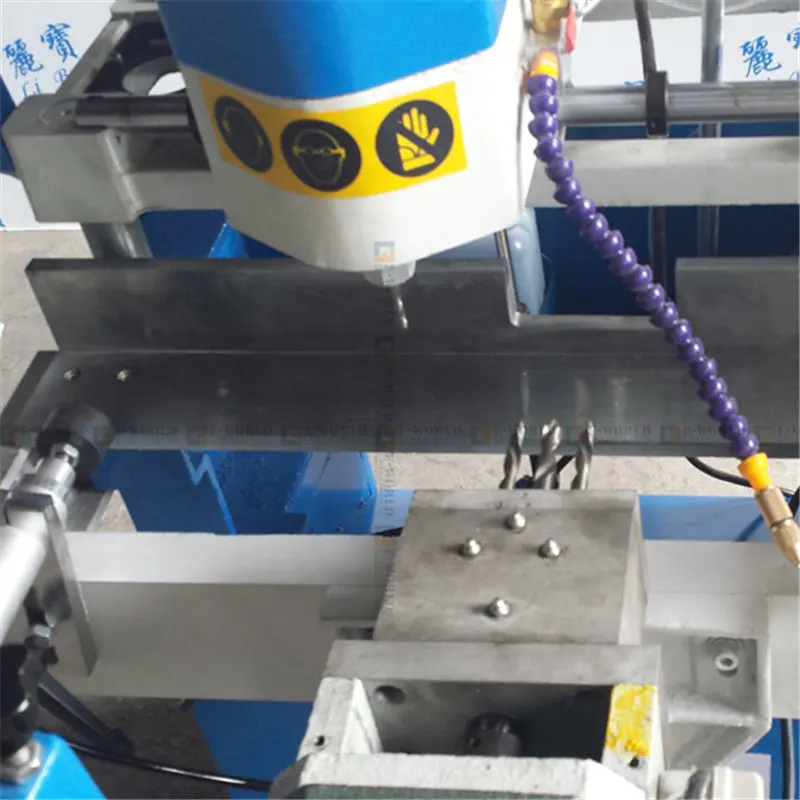

Double-head Copy-Routing Machine for Window Door04.jpg

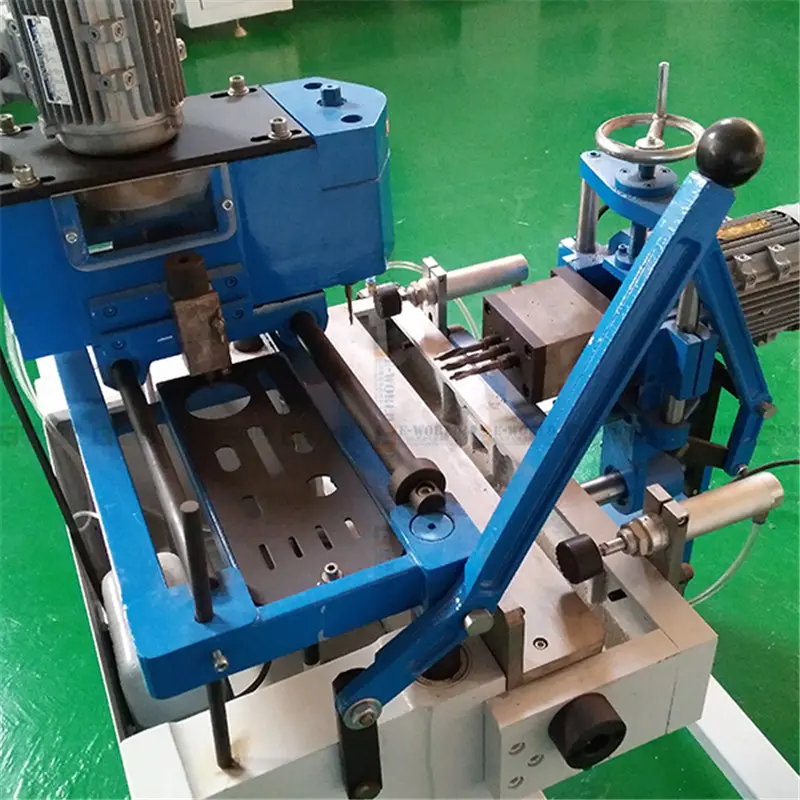

Double-head Copy-Routing Machine for Window Door05.jpg

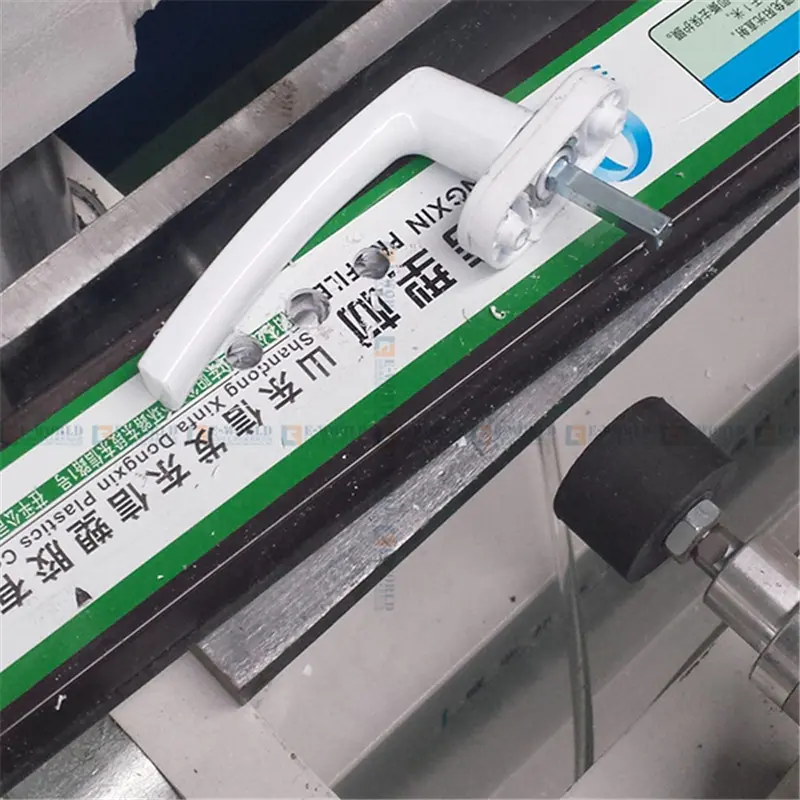

Double-head Copy-Routing Machine for Window Door03.jpg

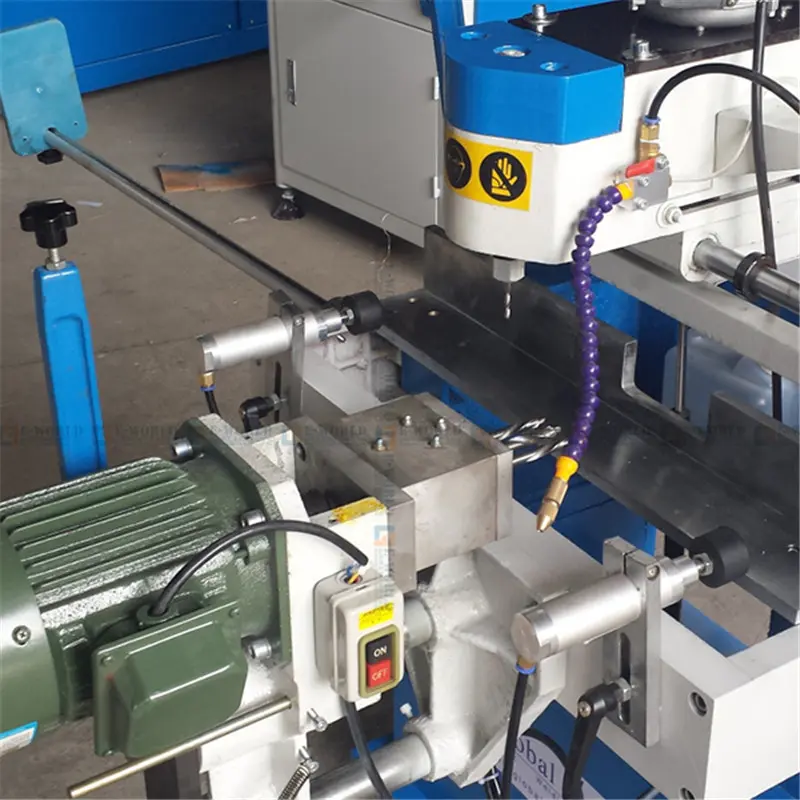

Double-head Copy-Routing Machine for Window Door06.jpg

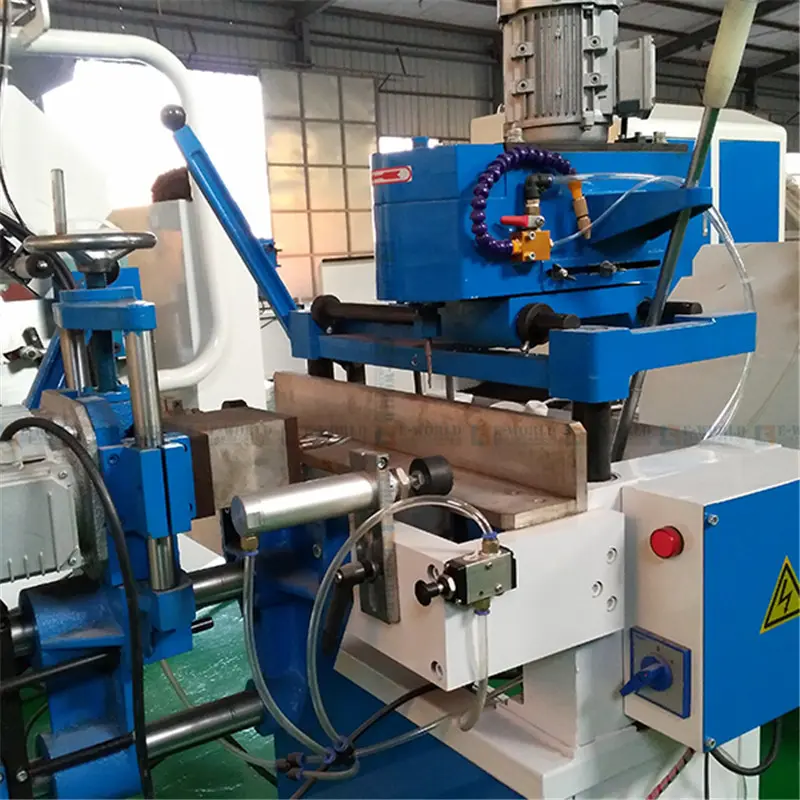

Double-head Copy-Routing Machine for Window Door02.jpg

Double-head Copy-Routing Machine for Window Door（USD 1500）

The machine is used for copy-routing of different shapes of holes and grooves of aluminum and PVC/UPVC/Plastic/Vinyl doors and windows, The belt is accelerated to achieve the high milling speed(1200 r/min)the features of easy operation, wide usage and high efficiency.

Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

    Contact us
    product details
    product Tags

    Product Description

    Place of Origin: Shandong, China (Mainland)
    Model Number: LSX01-100
    After-sales Service Provided: Engineers available to service machinery overseas
    Usage: window and door frame making
    Certificate: CE&ISO
    Funcolorction: Any colour or as your required
    Button and contact: Schneider
    Cutter rotational speed: 12000 r/min
    Outside dimension: (Vertical: 290*90mm) (Horizontal: 300*100mm)
    Input power: 0.75kw*2
    Air consumption: 30L/min
    Function: window door frame holes and grooves milling
    Warranty time: one year
    Double-head Copy-Routing Machine for Window Door02b81
    Double-head Copy-Routing Machine for Window Door060x8
    0102

    Technical parameters

    Model number: LSX01-100
    Working air pressure 0.4~0.6Mpa
    Air consumption 30L/min
    Power supply 380V 50Hz
    Input power 0.75kw×2
    Cutter rotational speed 12000 r/min
    Processing range Vertical: 290×90mm
    Horizontal: 300×100mm
    Outside dimension 1000×1130×1500mm
    Weight(about) 220kg

    Specifications

    Double-head Copy Router machine
    1. copy-routing of different shapes of holes and grooves.
    2. Process both PVC&Aluminum.

    Packaging & Delivery

    Packaging Details: standard PLYwood packing
    Delivery Detail: 7 days after get payment
